CANnect CAN FD extension module
High performance gateway CANnect extension module for CAN FD

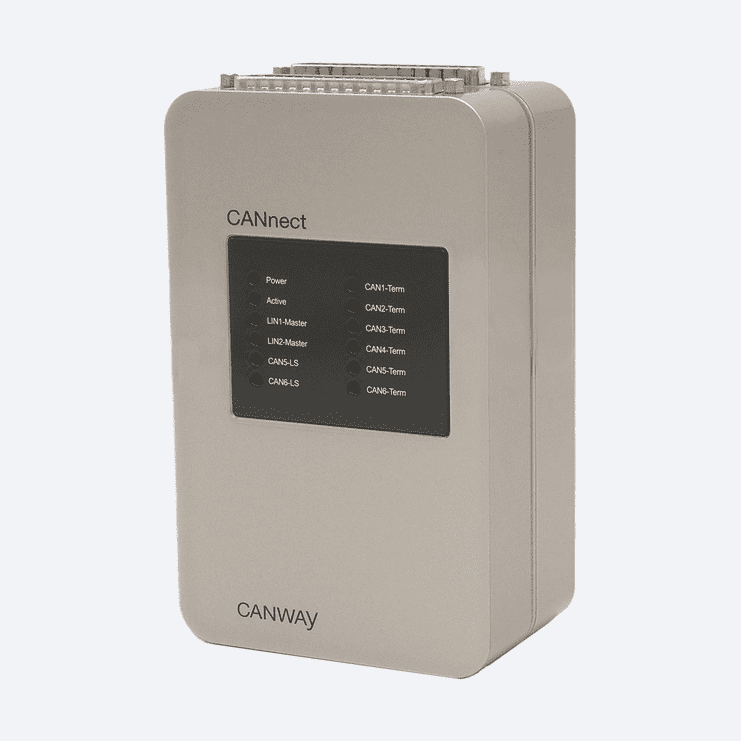

The CANnect CAN FD extension module enhances the base module by adding high performance access to CAN FD networks. The main features are the four CAN FD interfaces that support current standards ISO 11898 and non-ISO. In addition, numerous input and output channels are available for diverse measurement and control purposes. The extension module is based on modern, high capacity state-of-the-art FPGA technology. It supports the whole range of functions offered by the intuitive configuration software, well-known from the CANnect base module.
Datasheet | Phone | Mail | www.cannect.de
PERFORMANCE characteristics
- 4 CAN FD (ISO 11898-1:2015; up to 8 Mbit/s)
- Supports CAN FD standards ISO 11898 and non-ISO
- Mapping/routing to bus, message and signal levels between all bus systems
- Integrated restbus simulation, event triggered transmission of messages
- I/O channels for measurement and control purposes (ADC, DAC, DO)
- Simulates ECUs and sensors
- Standalone operation in real time when parameterized
- Integrates completely in the intuitive configuration software CW-921
(for Windows™, Mac and Linux)
* Operates together with the CANnect base module
Technical Data CAN FD Extension Module
CAN FD-Interface
| Number: | 4, galvanisch getrennt bis 1 kV |
| Type: | CAN FD ISO 11898-1:2015 CAN FD NON-ISO (Version 1.0) CAN-Protocol versions 2.0 A and 2.0 B |
| Bitrate: | Up to 8 Mbit/s,software-configurable |
| Termination: | Software-configurable independently for each bus |
Analog Inputs (in preparation)
| Number: | 4, galvanic isolated up to 500 V (Common GND) |
| Measurement Ranges: | ±30 VDC (±3, ±10 and ±60 VDC on request) |
| Resolution: | 12 Bit |
| Bandwidth: | 500 Hz |
Analog outputs (in preparation)
| Number: | 4, galvanic isolated up to 500 V (Common GND) |
| Output voltage range : | 0 to 10 VDC |
| Resolution : | 14 Bit |
| Output current : | max. 10 mA (Shortcircuit proof) |
Digital Outputs (in preparation)
| Number: | 7, galvanic isolated up to 500 V (Common GND) |
| Output voltage: | 60 VDC, 40 VAC (e.g. Vcc, GND ; common rail solid-state relays) |
| Output current : | 200 mA |
Power Supply
| Supply voltage: | 9 to 36 VDC |
| Current consumption: | 300 mA at 9 VDC |
Environmental conditions
| Temperature range operation: | -20 °C to 60 °C |
| Temperature range storage: | -20 °C to 70 °C |
| Relative humidity: | 35 % to 85 %, non-condensing |
| Protection class: | IP40 |
Mechanical Properties
| Housing: | Robust aluminum case |
| Dimensions: | 54,5 mm x 87mm x 140 mm (total height x width x length) |
| Connectors: | 50 pol. D-Sub, female connector; cable available as an accessory, customer-speci c cables on request |
| Additional options: | DIN hat rail mounting on request |
Download
Datasheet CANnect CAN FD Extension Module
Download (PDF)* hardware components available, support for configuration software in preparation
