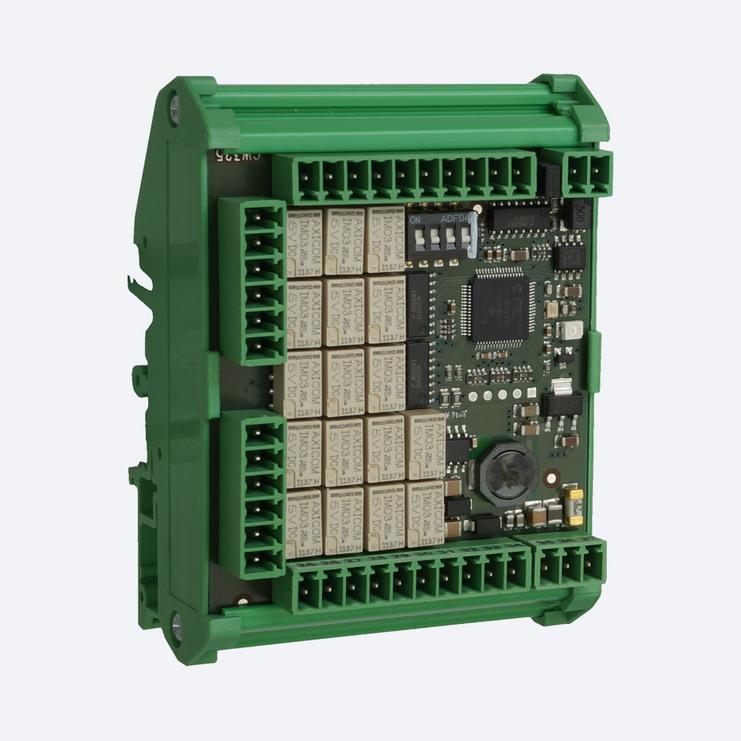

CW-325

BUS AND SIGNAL MULTIPLEXER

The bus and signal multiplexer module is a further product belonging to the CW-300 series for test bench technology and test bench automation. Utilizing the CW-325 it is possible to control the signal paths of bus systems such as CAN bus and FlexRay™ or any desired signal.

The signal paths are connected, disconnected or diverted by means of commands via a control CAN. It is possible to activate terminating resistors for termination purposes for bus systems or to divert the buses to a diagnostics gateway. 17 signal relays are available for these functions.

The open design in the top-hat rail housing (45 mm to DIN) offers the user a quick and easy solution to automate procedures in test bench technology.

The CW-325 is a component of the CW-300 series from CANWAY. The entire series is based on a modular design with a CAN bus interface that can be combined according to requirements of the respective application.

PERFORMANCE CHARACTERISTICS

  • Switch up to 5 bus systems or signals
  • 17 switchable signal relays to set the signal paths
  • Control via CAN bus
  • USB and Ethernet interfaces are also available in conjunction with the CW-101 or CW-102
  • Top-hat rail housing for quick and easy installation
  • Easy to extend and scale

Technical Data

SIGNAL Paths

Number: 5 signal paths for signal or bus-systems
Signal relays: 17 relays to switch signal lines
Bus systems: CAN-Bus: up to 1 Mbit/s
FlexRay: up to 10 MBit/s
Further bus-systems aon request
Voltage range: ±15 VDC
Current level max.: 1 A
Signal band width: 10 MHz or 10 Mbit/s

CAN-INTERFACE

Number: 1
Type: ISO 11898-2 (highspeed)
CAN-protocol version 2.0 A and 2.0 B, supports SAE J1939 (29-bit-identifier)
Data rate: 500 kbit/s, on request: 50, 100, 125, 250, 500, 800 and 1000 kbit/s
Termination: 120 Ohm, optional activation via jumper

Power supply

Supply voltage: 7 VDC to 30 VDC
Current consumption:

At 12 VDC: 25 mA
At 24 VDC: 16 mA

Environmental conditions

Temperature range operation: -20 °C to +65 °C
Temperature range storage: -20 °C to +85 °C
Relative humidity: 35 % to 85 %, non-condensing

General information

Housing: 45 mm DIN-top-hat rail housing
Dimensions (LxWxH): 65mm x 90 mm x 46 mm
Weight: 80 g
