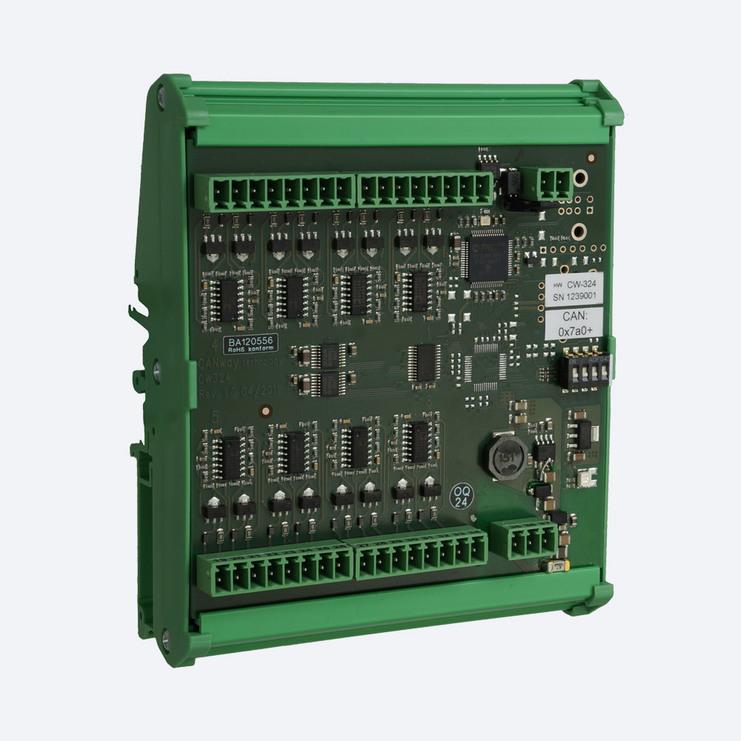

CW-324
CURRENT SINK INTERFACE
We have expanded our CW-300 series for test bench technology with the CW-324, a module with 16 sink mode outputs. It is possible to set each current sink between 0 and 22.5 mA with a high 12 bit resolution. Furthermore, the amperage can be redefined 100 000 times per second and all 16 channels synchronized.
The maximum switching speed of individual voltages depends on the bus system. Customer-specific modifications are possible, which when implemented it is possible to output any stored waveforms with switching speeds of up to 100 kHz.
Consequently, the CW-324 is particularly suited for performing component tests and simulations on HiL test benches. Furthermore, it is practical to deploy this model in all situations in which a certain current is to be applied to the test specimen.
PERFORMANCE CHARACTERISTICS
- 16 current sinks, freely selectable between 0 and 22,5 mA
- Control via CAN bus
- 12 bit resolution per channel
- Switching speeds up to 100 kHz
- All outputs can be synchronized
- Quick and easy to install, suitable for top-hat rail (45 mm to DIN)
- Easy to extend and scale channels
Technical Data
CURRENT SINKS
| Number: | 16 |
| Current level: | Freely adjustable from 0 to 22,5 mA |
| Resolution: | 12 bit per channel |
| Switching frequency: | Max. 100 kHz |
| Voltage range operation: | 1 VDC to 44 VDC at 25 °C, 1 VDC to 26 VDC over the entire temperature range |
| Dielectric strength max: | Up to 200 VDC |
CAN-Interface
| Number: | 1 |
| Type: | ISO 11898-2 (highspeed) CAN-protocol version 2.0 A and 2.0 B, supports SAE J1939 (29-bit-identifier) |
| Data rate: | 50, 100, 125, 250, 500, 800 and 1000 kbit/s |
| Termination: | 120 Ohm, optional activation via jumper |
Power Supply
| Supply voltage: | 7 VDC to 30 VDC |
| Current consumption: | At 12 VDC: 33 mA |
Environmental conditions
| Temperature range operation: | -20 °C to 65 °C |
| Temperature range storage: | -20 °C to 85 °C |
| Relative humidity: | 35 % to 85 % non-condensing |
General Information
| Housing: | 45mm-DIN-top-hat rail housing |
| Dimensions (LxWxH): | 102 mm x 125 mm x 46 mm |
| Weight: | 124 g |
Download
Datasheet CW-324
