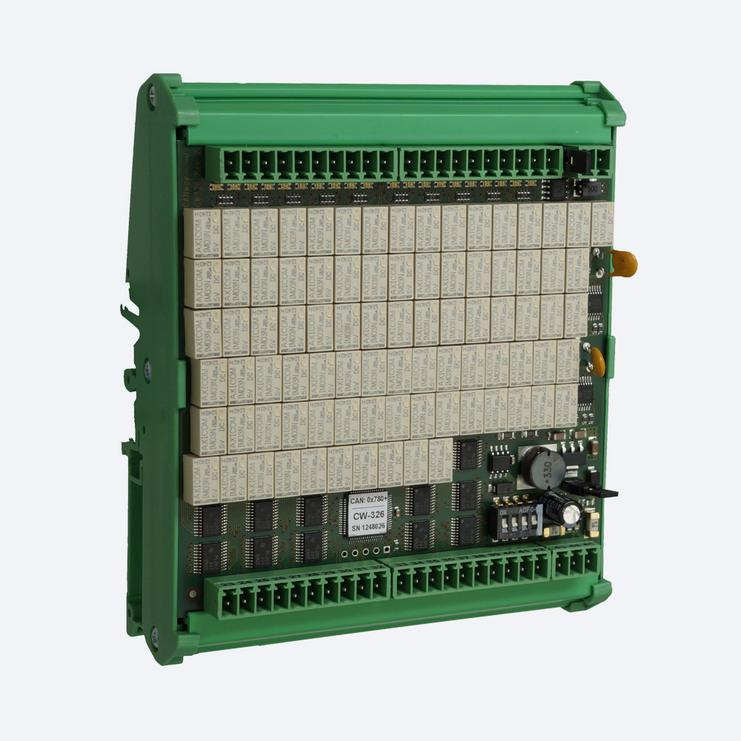

The Failure Injection Unit (FIU) serves to provoke physical failures, for example, to be able to test control units. It is a further module belonging to the CW-300 series, that can be used to automate test environments on HiL test benches.
As many as 20 signal lines can be disconnected, connected together, connected to ground or terminal 30 as required by means of a control CAN. A protective function with current limitation prevents damage occurring to the test specimen.
The open design in the top-hat rail housing (45 mm to DIN) offers the user a quick and easy solution to automate procedures in test bench technology.
As many as 20 signal lines can be disconnected, connected together, connected to ground or terminal 30 as required by means of a control CAN. A protective function with current limitation prevents damage occurring to the test specimen.
The open design in the top-hat rail housing (45 mm to DIN) offers the user a quick and easy solution to automate procedures in test bench technology.
Number: | 20 signal lines |
Signal voltage: | Max. 45 VDC |
Current: | Max. 1 A at without failure injection |
Current limitation: | 10 Ohm through connection, limitation at 2 A Response time < 1 ms emergency shutdown at 1 W |
Number: | 1 |
Type: | ISO 11898-2 (highspeed), CAN-protocol version 2.0 A and 2.0 B, supports SAE J1939 (29-bit-identifier) |
Data rate: | 500 kbit/s, on request: 50, 100, 125, 250, 500, 800 and 1000 kbit/s |
Termination: | 120 Ohm, optional activation via jumper |
Supply voltage: | 7 VDC to 30 VDC |
Current consumption: | 70 mA at 12 VDC |
Temperature range operation: | -20 °C to +65 °C |
Temperature range storage: | -20 °C to +85 °C |
Relative humidity: | 35 % to 85 % non-condensing |
Housing: | 45mm-DIN-top-hat rail housing |
Dimensions (LxWxH): | 100 mm x 108 mm x 50 mm |
Weight: | 150 g |
