CW-401 MkII

Current clamp meter with CAN-Interface

The CW-401 MkII is an extremely precise clamp meter designed for contactless current measurements across the measurement ranges from ±10 A to ±1000 A. Thanks to its premium, user-friendly finish and compact size the clamp meter is particularly suitable for use in difficult conditions and inaccessible places, for example in engine compartments. Intelligent temperature compensation ensures the clamp meter supplies precision measured values even in high ambient temperatures up to +120 °C. This is achieved by digitally processing the measured values in a microprocessor.

 Datasheet |  Phone |   Mail

Main Features

  • Versions for the measurement ranges: ±10 A, ±30 A, ±50 A, ±150 A, ±350 A, ±500 A, ± 750 A and ±1000 A
  • Resolution 1% ±50 mA relative to measuring range (up to ±50A additionally ±50 mA)
  • Temperature range: -40 °C up to +120 °C
  • Temperature compensation, sensor position- and remanence correction
  • Output of the measuring values via CAN bus 2.0 A/B (ISO 11898-2)
  • Robust housing
  • Small form factor, for application to hard-to-reach measuring points
  • Factory calibration
  • Intuitive configuration software

Measuring ranges: ±10 A / ±30 A / ±50 A / ±150 A / ±350 A / ±500 A / ±750 A / ±1000 A

User-friendly read out of measured current values via CAN-bus. That allows the measured values to be transmitted interference-free to any desired evaluation unit including over large distances. In conjunction with the CW-101 CAN USB interface it is possible to configure a clamp meter via CAN-bus. That means with the aid of the intuitive configuration software it is very easy to define the output transmission rate, CAN ID, bit rate, mean value generation and more. Moreover, it is possible to configure several clamp meters at the same time and export a DBC file, for example for use in a measuring chain.

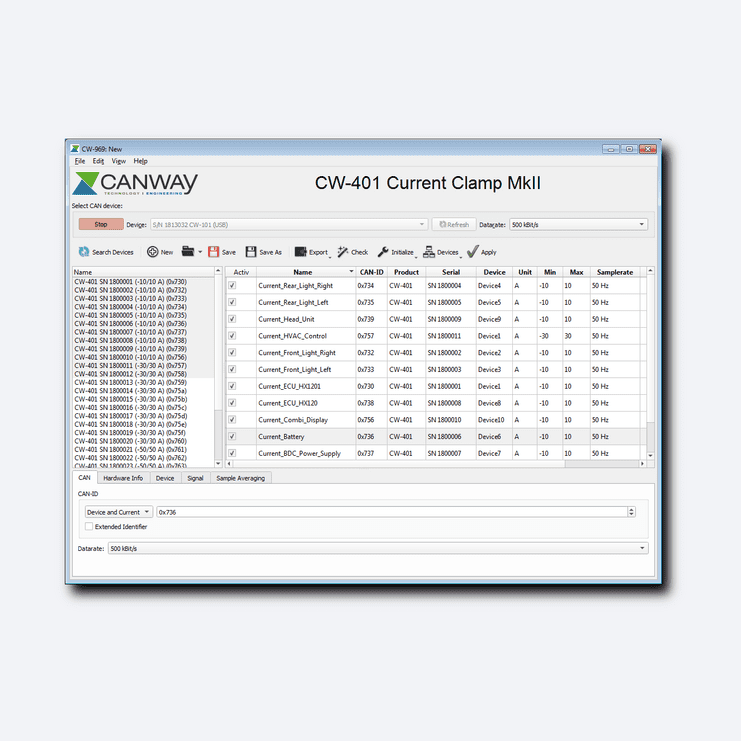

Configuration software CW-969

With the intuitive software, several current clamps can be configured for their measuring task simultaneously.


  • Configuration of CAN ID, sample rate and CAN-bus data rate
  • Assignment of signal names
  • Zero-Point Adjustment
  • Read out of latest calibration data
  • DBC-File Export
  • Sample Averaging
  • Offline Configurations
  • Save/Open of configuration files

Technical Data


Measurement range:  ±10 A, ±30 A, ±50 A, ±150 A, ±350, ±500 A, ±750 A, ±1000 A
Resolution: 1 mA
Accuracy: 1 % ± 50 mA (relative to measurement range)
Output rate: Max. 2 kHz, configurable
Measurement category:

CAT I (measuring voltage max. 48 V)

CAT III (in preparation)

Value averaging: Configurable


Number: 1
Type: ISO 11898-2 (high-speed)
CAN-protocoll versions 2.0 A and 2.0 B
Bitrate: High-speed up to 1 Mbit/s
Connectors: 4 pin LEMO, connection cable available on request


Supply voltage: 9 VDC to 36 VDC
Current consumption: approx. 40 mA at 12 VDC

Environmental conditions

Temperature range:

up to 150 A: -40 °C to +120 °C

from 350 A: -40 °C to +110 °C

Protection class: IP 65



up to 150 A: Robust aluminium case

 from 350 A: Robust polyamid case

Dimensions (LxWxH):

up to  ±50 A: 59 mm x 32 mm x17,5 mm

          ±150 A: 68 mm x 36 mm x 17,5 mm

from ±350 A: 90 mm x 55 mm x 22 mm


up to  ±50 A: 6 mm

          ±150 A: 11 mm

from ±350 A: 18 mm

Weight: up to ±50 A: approx. 60 g; ±150 A: approx.: 80 g; from ±350 A: approx. 110 g
Factory calibration: Standard: -20 °C to 110 °C
Extended: -40 °C to 120 °C
DAkkS-calibration on request
  • Offset-calibration over CAN-bus
  • Automatic remanence correction
  • Integrated temperature measurement
  • Output of measuring values over CAN-Bus 2.0
  • Intuitive configuration software
  • CANWAY Plugin for IPEmotion


Datasheet CW-401 MkII Current Clamp

Download (PDF)
